Mounting Box: The Solution to Your Electrical Woes

As we all know, the electrical system in our homes is not something to be taken lightly. A single fault or mistake can cause severe damage to property and even cost lives. Safety, therefore, should be the top priority when it comes to electrical installations and repairs.

One of the most critical components of an electrical system is the mounting box. It is a small but essential part that holds the wiring connections in place and keeps them safe from damage or short-circuiting. In this article, we will explore everything you need to know about mounting boxes and how they can benefit your electrical system.

What is a Mounting Box?

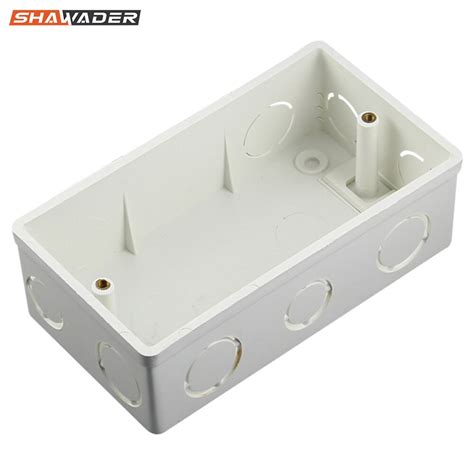

A mounting box is a small enclosure that houses electrical wires and connections. It is usually made of plastic or metal and is installed within walls, ceilings, or floors. The box provides a secure and stable platform for the connections, protecting them from external elements such as dust, moisture, or accidental damage.

Mounting boxes come in various sizes, shapes, and designs, depending on their intended application. Some are designed to hold switches, outlets, or dimmers, while others are meant for junctions or splices.

Types of Mounting Boxes

There are several types of mounting boxes, each with its unique features and benefits. Below are some of the most common ones:

1. Switch Box

A switch box is a rectangular or square-shaped enclosure used to house light switches and dimmers. It has one or more openings that allow access to the switch or dimmer mechanism. Switch boxes come in different depths, depending on the thickness of the wall or ceiling where they are installed.

2. Outlet Box

An outlet box is similar to a switch box but is designed to hold electrical outlets instead of switches. It also has one or more openings for the outlet slots and grounding screw.

3. Junction Box

A junction box is a box meant to hold electrical connections or splices. It is installed where wires from different circuits meet and need to be joined together. Junction boxes can also be used for mounting fixtures such as ceiling fans or light fixtures.

4. Fan Box

A fan box is a special type of junction box designed to support the weight of a ceiling fan. It has a metal brace that allows the fan to be securely mounted on the ceiling without falling off.

Advantages of Mounting Boxes

Mounting boxes offer several benefits to your electrical system, including:

1. Safety

Mounting boxes provide a safe and secure location for electrical connections. They prevent accidental contact with live wires, reducing the risk of electrocution or fire.

2. Durability

Mounting boxes are made of sturdy materials that can withstand wear and tear, ensuring that the electrical connections remain intact and functional.

3. Convenience

Mounting boxes make it easy to access electrical connections when repairs or replacements are needed. They also make it possible to install switches, outlets, and fixtures in different locations in a room.

How to Choose the Right Mounting Box

Choosing the right mounting box is crucial for the safety and effectiveness of your electrical system. Here are some factors to consider when selecting a mounting box:

1. Size

The size of the mounting box should match the intended application. A switch box, for instance, should be large enough to accommodate the switch or dimmer mechanism and allow room for wiring connections.

2. Material

Mounting boxes come in various materials, such as plastic, metal, or fiberglass. The material you choose should depend on the environment where the box will be used. For example, plastic boxes are ideal for dry areas, while metal boxes are best for damp or wet areas.

3. Depth

The depth of the mounting box should match the thickness of the wall or ceiling where it will be installed. A shallow box may not provide enough space for wiring connections, while a deep box may protrude too much from the wall.

Installation Tips

Installing a mounting box is a simple process that requires basic electrical knowledge and tools. Here are some tips to ensure proper installation:

1. Turn off power

Before installing a mounting box, turn off the power supply to the area where the box will be installed. This prevents accidental shock or electrocution.

2. Choose the right box

Select the appropriate mounting box for the intended application. Make sure the box is the right size, material, and depth for the job.

3. Install the box

Insert the mounting box into the opening in the wall or ceiling. Secure it in place using screws or nails, depending on the type of box and the material of the wall or ceiling.

4. Connect the wires

Carefully connect the wires to their respective terminals, following the manufacturer's instructions. Make sure the connections are tight and secure.

5. Test the connections

After connecting the wires, test the connections with a voltage tester to ensure they are working correctly. Finally, install the cover plate or fixture over the box.

Mounting boxes are an essential part of any electrical system. They provide a secure and stable platform for electrical connections, ensuring safety, durability, and convenience. When choosing a mounting box, consider factors such as size, material, and depth to ensure proper functionality.

If you need help selecting or installing mounting boxes, don't hesitate to contact a licensed electrician. Remember, safety always comes first when it comes to electricity.

Frequently Asked Questions

1. What is the difference between a switch box and an outlet box?

Switch boxes are designed to hold switches and dimmers, while outlet boxes are meant for electrical outlets.

2. What size mounting box do I need for a ceiling fan?

You will need a special fan box designed to support the weight of the fan.

3. Can I install a shallow mounting box in a thick wall?

No, you should choose a box with the appropriate depth for the thickness of the wall.

4. Can I use a plastic mounting box in a damp area?

No, plastic boxes are not suitable for damp or wet areas.

5. How many wires can I connect to a junction box?

The number of wires that can be connected to a junction box depends on the size of the box and the gauge of the wires.

6. Can I use a switch box to hold an outlet?

No, switch boxes are not designed to hold electrical outlets.

7. Can I install a mounting box without turning off the power?

No, you should always turn off the power supply before installing a mounting box.

8. What is the difference between a round box and a square box?

Round boxes are typically used for fixtures such as ceiling fans, while square boxes are used for switches and outlets.

9. Can I install a metal box in a dry area?

Yes, metal boxes can be used in dry areas.

10. How do I know if a mounting box is the right size for my application?

The mounting box should be large enough to accommodate the wiring connections and any fixtures or devices that will be installed on it.
